What is
AR SAND brings higher mold strength and better recycle feature.
It is also able to decrease using caking agent and show better recycle property and environment friendly due to not containing free silicic acid.
Feature

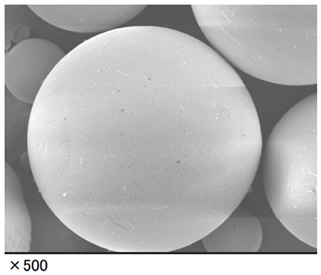

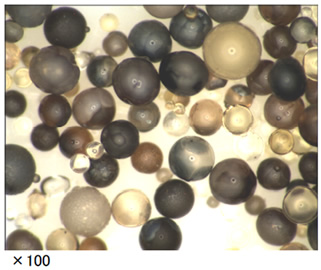

- Very spherical particle brings better fluidity and sand filling efficiency, provides higher mold accuracy and strength.
- High resistance to wear, crush and thermal shock due to little thermal expansion.
- Mullite, main component of AR SAND, provides fireproof.
- Property of High hardness and shock-resistance provide decreasing of industrial wastes because few crushed AR SAND brings smaller quantity of new sand supply under recycle system.

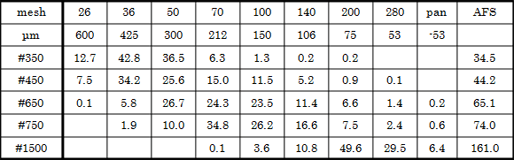

Grain fineness distribution

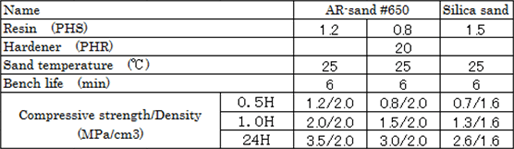

Compressive strength - Ester-curing unbaked process

Crushing ratio

Shell mold (RCS)

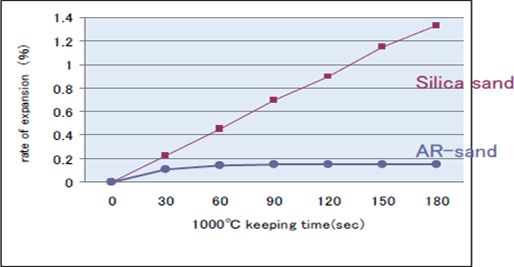

Rate of thermal expansion at 1000℃

Inquiries regarding products and solutions
Casting Materials Sales Section (East)
797-6 Shukuorui-machi, Takasaki-shi, Gunma 370-0032, Japan
TEL +81-27-353-3030
Casting Materials Sales Section (West)
1-4 Takamatsu-chou, Konan-shi, Shiga 520-3211, Japan
TEL +81-748-75-1241
